- Size: 3600*1460*1520mm
- Place of Origin: China
- Brand Name: HuaTeng
- Model Number: HTK-190
- Weight: 1320.000 kg
Specifications
the lowest temp 15degree below 0.
R-22 or R-134a refrigerant
Cooling Capacity:40kw~1726kw

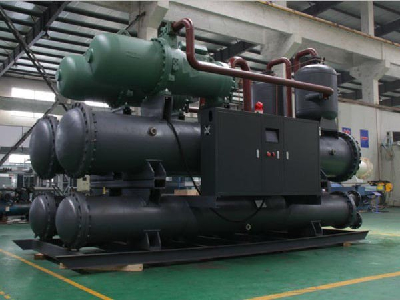

The series chillers used the famous screw compressor for full fluid dedicated compressor ,efficient flooded evaporator design , evaporator inlet refrigerant flow plate and imports are high-quality electronic expansion valve, refrigerant boiling in the evaporation process of the formation of flexible optimization of temperature, so a perfect match, so that unit energy efficiency as high as 5.8 or more. (Standard conditions for the evaporation temperature machine 5 °C )
Acid liquid energy efficient units dedicated full water temperature can reach 15 °C (The highest evaporation temperature is set 12 °C ). It reached the limit of the compressor's operating range. The EER is as high as 6.42 or above.
- Size: 3600*1460*1520mm
- Place of Origin: China
- Brand Name: HuaTeng
- Model Number: HTK-190
- Weight: 1320.000 kg
models | single compressor | double compressor | ||||||||||||||
mode | HBK-100SCM | HBK-120SCM | HBK-140SCM | HBK-160SCM | HBK-180SCM | HBK-200SCM | HBK-240SCM | HBK-270SCM | HBK-300SCM | HBK-320SCM | HBK-360SCM | HBK-400SCM | HBK-480SCM | HBK-540SCM | HBK-600SCM | |
cooling capacity | KW | 190 | 216 | 270 | 299 | 330 | 408 | 476 | 534 | 606 | 299 | 330 | 408 | 476 | 534 | 606 |
Kcal/h | 163400 | 185760 | 232200 | 257140 | 283800 | 350880 | 409360 | 459240 | 521160 | 257140 | 283800 | 350880 | 409360 | 459240 | 521160 | |
power | 50Hz | 3P-380V-50Hz | ||||||||||||||
input power | KW | 64 | 73 | 89 | 97.6 | 110 | 133 | 151 | 167 | 188 | 97.6 | 110 | 133 | 151 | 167 | 188 |
EER | COP | 2.97 | 2.96 | 3.03 | 3.06 | 3.00 | 3.07 | 3.15 | 3.20 | 3.22 | 3.06 | 3.00 | 3.07 | 3.15 | 3.20 | 3.22 |
cooling way | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | |
cooling control | electronic expansion value | |||||||||||||||
refrigerate | R22 | |||||||||||||||
comprosser | mode | semi-colsed screw | ||||||||||||||
working style | Y-Δ/Δ-Δ | |||||||||||||||
capacity | 0-25%-50%-75%-100% | |||||||||||||||
condenser | mode | tubular exchanger | ||||||||||||||
(m3/h)water discharge | 43.7 | 49.7 | 61.7 | 68.2 | 75.7 | 93.0 | 107.8 | 120.6 | 136.5 | 68.2 | 75.7 | 93.0 | 107.8 | 120.6 | 136.5 | |
(Kpa)hydraulic | 55 | 55 | 55 | 58 | 58 | 58 | 61 | 61 | 61 | 58 | 60 | 60 | 61 | 61 | 61 | |
waterpipe | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 | DN200 | DN200 | DN125 | DN125 | DN150 | DN150 | DN200 | DN200 | |
evaporater | mode | hydraulic filling evaporater | ||||||||||||||
(m3/h)water discharge | 32.7 | 37.1 | 46.4 | 51.4 | 56.7 | 70.2 | 81.9 | 91.8 | 104.2 | 51.4 | 56.7 | 70.2 | 81.9 | 91.8 | 104.2 | |
(Kpa) | 52 | 55 | 55 | 58 | 58 | 58 | 58 | 58 | 61 | 58 | 58 | 60 | 60 | 60 | 61 | |
waterpipe | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 | DN200 | DN200 | DN125 | DN125 | DN150 | DN150 | DN200 | DN200 | |
safeguard | High and low pressure protection; overload protection; anti-phase protection, compressor over temperature | |||||||||||||||
protection; high pressure safety valve protection; oil pressure protection; exhaust over heat protection | ||||||||||||||||
weight | Kg | 1320 | 1480 | 2130 | 2560 | 3100 | 3500 | 3850 | 4070 | 4150 | 4620 | 5760 | 6750 | 7700 | 7840 | 8100 |
size | L | 3600 | 3600 | 3600 | 3800 | 3800 | 3800 | 3800 | 4000 | 4000 | 4600 | 4600 | 4600 | 4800 | 4900 | 5000 |
W | 1460 | 1460 | 1460 | 1560 | 1560 | 1640 | 1640 | 1760 | 1760 | 1460 | 1460 | 1460 | 1560 | 1640 | 1640 | |
H | 1520 | 1520 | 1630 | 1630 | 1650 | 1650 | 1860 | 1860 | 1910 | 1620 | 1620 | 1730 | 1850 | 1850 | 1880 | |
(dB)noise | 73 | 75 | 75 | 76 | 76 | 76 | 78 | 78 | 80 | 78 | 78 | 78 |
